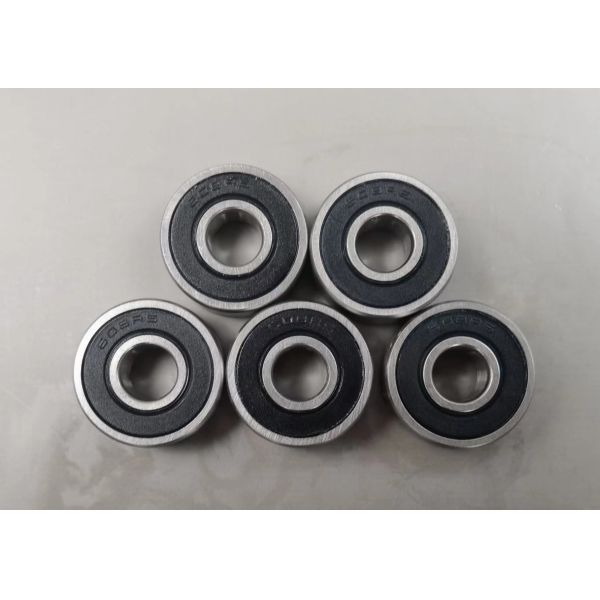

608 Abec 7 Ceramic Hybrid Bearings Silicon Nitride High Precision Waterproof

  • 1
  • 2

Brand Name : CSQ

Model Number : 608

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pcs in 5 work days

Delivery Time : 5 work days

Packaging Details : Plastik box+carton box

Name : 608 Hybrid Ceramic Bearing

Category : Miniature Hybrid Ceramic Ball Bearing

Size : Ø8×Ø22×7mm with Ø3.969mm Si3N4 balls

Race material : GCr15

Ball material : Si3N4 (Silicon nitride)

Cage and seals : Peek//Nylon cage+Rubber seals

MOQ : 50 pieces

Pacage : Plastik box+carton box

Contact Now

608 Hybrid Ceramic Bearing With high precision Ceramic balls

Description of Hybrid ceramic ball bearing 608:

GCr15 is a kind of high carbon chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has higher hardness, uniform structure, good wear resistance and high contact fatigue performance. Because of the above properties, GCr15 is suitable material for bearing races. Inside fitted with good quality nylon cage and our G5 precision zirconia or silicon nitride balls, which are processed after hot isostatic pressure sintering technology and careful grinding production.

Peek and material both have outstanding chemical stability, is resistant to many kinds of corrosion, are ideal material for bearings cage. Nylon cage has good cost performance.

Performance advantages of Hybrid ceramic ball bearing 608:

Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.

► Key properties of hot isostatic pressure sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation

608 Abec 7 Ceramic Hybrid Bearings Silicon Nitride High Precision Waterproof
