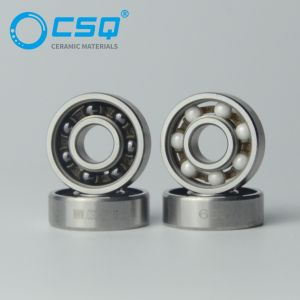

Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm

  • 1
  • 2
  • 3

Brand Name : CSQ

Model Number : 608

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pcs in 5 work days

Delivery Time : 5 work days

Packaging Details : Plastik box+carton box

Name : Hybrid Ceramic Bearing 608

Size : 608: 8×22×7mm

Races Material : Stainless steel/ Bearing steel or other steel you need

Ball material : 3.969mm in material of ZrO2/Si3N4

Cage and seals : Peek//Rubber/Stainless steel

Pacage : Plastik box+carton box

Contact Now

Hybrid Ceramic Bearing 608 of Steel Races+Ceramic Balls
Description of Hybrid Ceramic Bearing 608:
Our company has an automatic assembly production line for 608 bearings, can volume produce 608 bearings in steel or ceramic material and in C2/C3 or other customized clearance to meet your different demands. The races can be in material of Stainless steel/ Bearing steel or other steel you need and the balls can be in material of zirconia, silicon nitride and silicon carbide. The hybrid ceramic bearing 608 combines the nice wear resistance of steel and the excellent resistance to corrosion and to high temperature of ceramic material. They are non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.
Material properties of ceramic material:
Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm

Product Tags:

ceramic stainless steel hybrid bearings



608 ceramic hybrid bearing



Hybrid Ceramic Bearing 8×22×7mm


Wholesale Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm from china suppliers

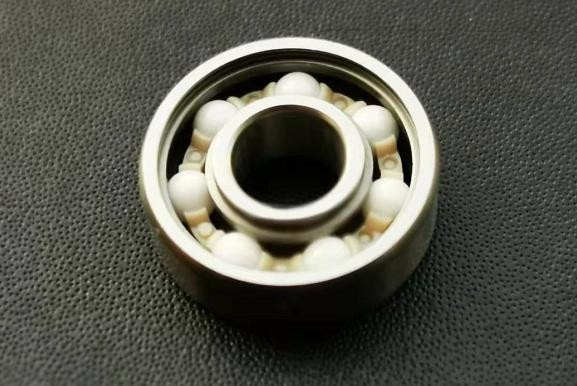

Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm Images
